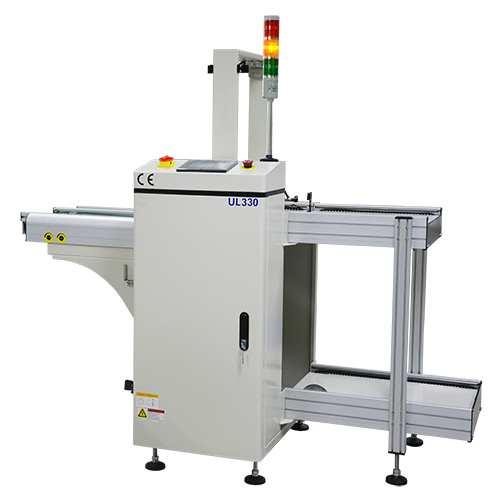

Multi Magazine Line Unloader
Automatic Empty Magazine Load and Full Magazine Offload
Pressure Regulated on SMC Pneumatic Pusher
Cast Aluminum Integrated Lifting Platform
Selectable Pitch Settings
Controlled by PLC
9" HMI Display
Panasonic Sensor CX-422
3-Color Light Tower and Audible Alarm
SMEMA Compatible
CE compliance
Product Description
Application:
Multi Magazine Line Unloader continuously unloads PCBs from SMT assembly line into the magazine by a specially designed pusher. The magazine indexes to the next position and is ready for the following unloading cycle.
Main Specifications:
| Conveyor Height: |
950 ± 30 mm (For SMT application)
|
|
Flow Direction:
|
Left to right (Optional Right to left) |
|
Fixed Rail:
|
Front (Optional rear rail fixed) |
|
Component clearance:
|
Bottom 25mm (Or specify) |
|
PCB Cycle Time:
|
± 7 seconds
|
|
Magazine Change-over Time:
|
± 25 seconds
|
|
Pitch Control:
|
1-4, 10mm pitch (Or specify)
|
|
Magazine Capacity:
|
1 magazine on the lifter platform
1 empty magazine on the upper output magazine conveyor
1 full magazine on the lower input magazine conveyor (Or specify)
|
| Loaded Weight: |
Max 50 kilos each magazine
|
| Machine Interface: | SMEMA |
| Power Supply: |
AC220 ±10v, 50Hz /110V ±10v, 60Hz
|
|
Air Supply:
|
5~6 kg/cm² (4~6 bar) |
Order and Shipping Info:
| Description | Multi Magazine Line Unloader 250mm,330mm,390mm,460mm | |||
| Model No | UL250 | UL330 | UL390 | UL460 |
| Max PCB Size(LxW) | 350x250mm | 460x330mm | 535x390mm | 535x460mm |
| Magazine Size(LxWxH) | 355x320x563mm | 460x400x563mm | 535x460x570mm | 535x530x570mm |
| Machine Dimension(LxWxH) | 1680x765x1200mm | 1950x850x1200mm | 2160x910x1200mm | 2160x975x1200mm |
| Net Weight | 230kgs | 250kgs | 290kgs | 320 kgs |
| Shipping Dimension(LxWxH) | 1830x915x1400mm | 2100x1000x1400mm | 2310x1060x1400mm | 2310x1125x1400mm |
| Gross Weight | 302kgs | 335kgs | 386kgs | 417kgs |
Options:
Safety Cover, Option Part Number: SC058 for L250, L330, SC059 for L390, L460
Line Central Auto Width Adjustment, Option Part Number: AW060-Loader
Additional Magazine Capacity, Option Part Number: AM061
Customized Magazine Size, Option Part Number: CM062
Other Options Available on Request
